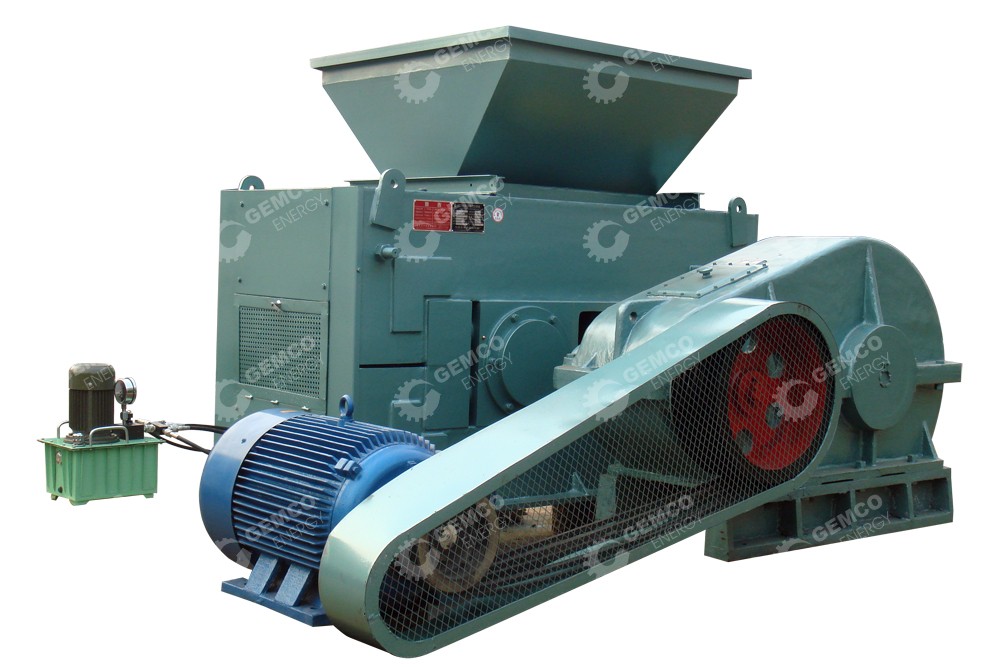

Coal/Charcoal/Coke Briquette Press

Coal/Charcoal/Coke Briquette Press

  • Power: 7.5-15kw
  • Capacity: 4TPH
  • Application: Roll press briquetting machine is widely used in coal industry, metallurgy industry, chemical industry etc.

Raw Material and Attention
  1. Raw material can be processed: Coal dust like brown coal, lignite coal, lean coal, anthracite, peat, and the old brown coal, charcoal fines, coke dust/fines, peacoke, carbon black, carbon dust, clay, activated carbon, etc.
  2. The materials size and moisture requests before briquetting: In order to ensure the good quality and mechanical strength of the final product, special care should be taken to ensure that the granule size fed to the machine is maintained below 3mm, preferably in the range of 30-40% smaller than 1–2 mm, with no more than 10% over 2 mm.

video of Lignite Coal Briquette Press



Application of Briquette Machines
The coal dust briquette machine is also called roll press briquetting machines which have been used to increase the particle size of and bulk densities of materials to improve their handling. In a roll press briquetter, material is densified by compression between two main counter-rotating rolls. The roll surfaces have pockets to form briquettes of desired size and shape when the material passes between the rolls. This machine is widely used in coal industry, metallurgy industry, chemical industry etc.
GEMCO have two types of coal briquette press machine, below is the detail.

Mechanical Coal/Charcoal/Coke Briquette Press

mechanical coal briquette press Structure: Four-roller double-pressing type.

Advantage: These four rollers apply pressure twice to the briquettes being produced, such the briquettes made by this coal briquette machine are stronger with a high density, and the surface is smoother. This briqueting press machine has a national patent in China.

Main Pamameters of The Coal/Charcoal/Coke Briquetting Machine
Model capacity Power(kw) Speed of main shaft Type of pressure Material of roller Form of structure
GCXM-4    4TPH 7.5-15 18r/min Mechanical 65Mn Four roller double press
GCXM-6    6TPH 11-18.5 15r/min Mechanical 65Mn Four roller double press
GCXM-8    8TPH 15-22 15r/min Mechanical 65Mn/9cr2Mn Four roller double press


Mechanical and Hydraulic Coal/Charcoal/Coke Briquette Machine

Mechanical and hydraulic coal briquette machine Structure:
1. Four-roller double-pressing type.
2. Mechanical and HydraulicIt structure.

Advantage:
Mechanical and HydraulicIt structure: when the hydraulic system is problem, you can use mechanical type when maintain it. It does not influence the machine's working.


Main Pamameter of Coal/Charcoal/Coke Briquetting Machine
Model capacity Power(kw) Speed of main shaft Type of pressure Material of roller Form of structure
GCXM-10  10TPH 18.5-30 13r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press
GCXM-15   15TPH 30-45 13r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press
GCXM-20   20TPH 55-75 13r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press
GCXM-30   30TPH 75-90 10r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press
Hydraulic Briquette Machine for biomass raw material click here

Minimum Coal/Charcoal/Coke Briquette Machine

Minimum coal briquette machine Main Parameter
Model: GCXM-1
Power: 5.5kw
Producing capacity:1-2TPH
Diameter of roller: 290mm
Width of roller: 200mm
Form of structure: Two rollers single press
Overall size: 1200×1000×1420
Weight: 560kg

Structure: Two-roller single pressing type.
Advantage: Low cost machine, which is suitable for individual or small industry.


Final Briquettes:
Shape: Can be round, pillow, oval.
Size: Changeable size 18mm-80mm, made according to clients requests.
coal briquettes    coal briquette
coal briquettes    briquettes
